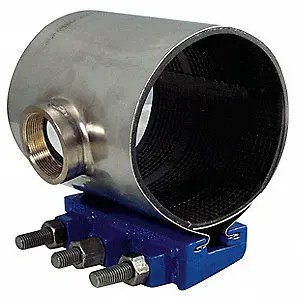

Tapped Full Circle® Repair Clamp

Single Band

Key Features:

  • Stainless Steel outlet welded to band and features a choice of NPT, CC, AWWA or BSP threads
  • Removable lugs allow installation in tight spaces
  • Maximum support and reinforcement with 360o coverage
  • Drop-in bolts in the joint to be opened help ease installation
  • A wide variety of outlet sizes and thread types available to meet demand
  • Lugs have a Fusion-Bonded Flexi-Coat® Epoxy Finish for great corrosion resistance
  • One starter (longer) bolt minimum per clamp thru 4.5″ O.D. size to help with installation
  • Range up to .40″
  • Pressure ratings up to 300 PSI

SKU: N/A
Clear
View cart

Description

1007

Description:

  • A tapped clamp to repair damaged pipe at broken or torn out service connections or branch lines.

Application:

  • Service connection or branch line connections.

Key Features

  • Stainless Steel outlet welded to band and features a choice of NPT, CC, AWWA or BSP threads
  • Removable lugs allow installation in tight spaces
  • Maximum support and reinforcement with 360o coverage
  • Drop-in bolts in the joint to be opened help ease installation
  • A wide variety of outlet sizes and thread types available to meet demand
  • Lugs have a Fusion-Bonded Flexi-Coat® Epoxy Finish for great corrosion resistance
  • One starter (longer) bolt minimum per clamp thru 4.5″ O.D. size to help with installation
  • Range up to .40″
  • Pressure ratings up to 300 PSI

Materials Specifications (subject to change)

  • BAND: Stainless Steel Type 304
  • LUGS: Ductile Iron ASTM A536, 80-55-06
  • GASKET: Nitrile (Buna N) compounded to produce superior storage and performance characteristics, while resisting water, acids, alkalies, most (aliphatic) hydrocarbon and many other chemicals
  • Temperature Range: -20°F to 180°F. Consult manufacturer for specific applications and other service temperatures
  • BRIDGE PLATE: 304 Stainless Steel recessed flush and bonded into gaske
  • BOLTS: High strength low alloy electrogalvanized steel with heavy semi-finished hexagon nuts. Per AN I B.
  • 18.2.2. Optional 304 Stainless Steel bolts with fluoropolymer coated nuts to prevent galling
    NOTE: Also available in metric sizes. HDPE applications will require clamps with spring washers.

Pipe Applications

  • Cast Iron, Ductile Iron, Asbestos Cement, Steel, PVC, HDPE, and most other types of pipe

Sizes (in inches):

  • • 3, 4, 6, 8, 10, 12 offered with 3⁄4″, 1″ NPT or CC taps
  • 4, 6, 8, 10, 12 offered with 11⁄4″, 11⁄2″ or 2″ NPT taps
  • 4, 6, 8, 10, 12 offered with 2″ CC taps

3/4' and 1' NPT Taps

STANDARD3/4" NPT 20MM1" NPT 25MMMETRIC
NOMINAL SIZE INCHESO.D. RANGE INCHESWIDTH INCHESWT. EACH LBS.CATALOG NUMBERCATALOG NUMBERNOMINAL SIZE MMO.D. RANGE MMWIDTH MMWT. EACH KG.
33.46-3.70
3.46-3.70		7.5
12.5		8.3
12.8		238-00035007-006
238-00035012-006
228-20143820-000		238-00035007-008
238-00035012-008		8088-93
88-93		190
317		3.8
5.8
33.73-4.00
3.73-4.00		7.5
12.5		8.3
12.8		238-00037507-006
238-00037512-006		238-00037507-008
238-00037512-008		8095-101
95-101		190
317		3.8
5.8
33.96-4.25
3.96-4.25		7.5
12.5		8.3
12.8		238-00040007-006
238-00040012-006		238-00040007-008
238-00040012-008		80-100101-107
101-107		190
317		3.8
5.8
44.45-4.73
4.45-4.73		7.5
12.5		8.3
12.8		238-00045007-006
238-00045012-006		238-00045007-008
238-00045012-008		100114-200
114-200		190
317		3.8
5.8
44.74-5.14
4.74-5.14		7.5
12.5		10.7
18		238-00048007-006
238-00048012-006		238-00048007-008
238-00048012-008		100121-130
121-130		190
317		4.9
8.3
66.56-6.96
6.56-6.96		7.5
12.5		11.1
17.1		238-00066307-006
228-00066312-006		238-00066307-008
238-00066312-008		150167-176
167-176		190
317		5.4
8.9
66.84-7.24
6.84-7.24		7.5
12.5		11.3
19.3		238-00069007-006
238-00069012-006		238-00069007-008150174-183
174-183		190
317		5.4
8.9
88.54-8.94
8.54-8.94		7.5
12.5		13.2
21.4		238-00086307-006
238-00086312-006		238-00086307-008
238-00086312-008		200217-227
217-227		190
317		6.1
9.8
88.99-9.39
8.99-9.39		7.5
12.5		13.2
21.4		238-00090507-006
238-00090512-006		238-00090507-008
238-00090512-008		200229-238
229-238		190
317		6.1
9.8

3/4' and 1' NPT Taps

STANDARD3/4" NPT 20MM1" NPT 25MMMETRIC
NOMINAL SIZE INCHESO.D. RANGE INCHESWIDTH INCHESWT. EACH LBS.CATALOG NUMBERCATALOG NUMBERNOMINAL SIZE MMO.D. RANGE MMWIDTH MMWT. EACH KG.
33.46-3.70
3.46-3.70		7.5
12.5		8.3
12.8		238-00035007-006
238-00035012-006
228-20143820-000		238-00035007-008
238-00035012-008		8088-93
88-93		190
317		3.8
5.8
33.73-4.00
3.73-4.00		7.5
12.5		8.3
12.8		238-00037507-006
238-00037512-006		238-00037507-008
238-00037512-008		8095-101
95-101		190
317		3.8
5.8
33.96-4.25
3.96-4.25		7.5
12.5		8.3
12.8		238-00040007-006
238-00040012-006		238-00040007-008
238-00040012-008		80-100101-107
101-107		190
317		3.8
5.8
44.45-4.73
4.45-4.73		7.5
12.5		8.3
12.8		238-00045007-006
238-00045012-006		238-00045007-008
238-00045012-008		100114-200
114-200		190
317		3.8
5.8
44.74-5.14
4.74-5.14		7.5
12.5		10.7
18		238-00048007-006
238-00048012-006		238-00048007-008
238-00048012-008		100121-130
121-130		190
317		4.9
8.3
66.56-6.96
6.56-6.96		7.5
12.5		11.1
17.1		238-00066307-006
228-00066312-006		238-00066307-008
238-00066312-008		150167-176
167-176		190
317		5.4
8.9
66.84-7.24
6.84-7.24		7.5
12.5		11.3
19.3		238-00069007-006
238-00069012-006		238-00069007-008150174-183
174-183		190
317		5.4
8.9
88.54-8.94
8.54-8.94		7.5
12.5		13.2
21.4		238-00086307-006
238-00086312-006		238-00086307-008
238-00086312-008		200217-227
217-227		190
317		6.1
9.8
88.99-9.39
8.99-9.39		7.5
12.5		13.2
21.4		238-00090507-006
238-00090512-006		238-00090507-008
238-00090512-008		200229-238
229-238		190
317		6.1
9.8

1 1/4". 1 1/2" and 2" NPT Tape

STANDARD3/4" NPT 20MM1" NPT 25MM1" NPT 25MMMETRIC
NOMINAL SIZE INCHESO.D. RANGE INCHESWIDTH INCHESWT. EACH LBS.CATALOG NUMBERCATALOG NUMBERCATALOG NUMBERNOMINAL SIZE MMO.D. RANGE MMWIDTH MMWT. EACH KG.
44.45-4.73
4.45-4.73
4.45-4.73
4.45-4.73		7.5
10
12.5
15		10
13
16
19		238-00045007-010
238-00045010-010
238-00045012-010
238-00045015-010		238-00045007-012
238-00045010-012
238-00045012-012
238-00045015-012		238-00045007-014
238-00045010-014
238-00045012-014
238-00045015-014		100114-120
114-120
114-120
114-120		190
254
317
381		4.1
5.9
7.3
8.6
44.74-5.14
4.74-5.14
4.74-5.14
4.74-5.14		7.5
10
12.5
15		11
15
18
21		238-00048007-010
238-00048010-010
238-00048012-010
238-00048015-010		238-00048007-012
238-00048010-012
238-00048012-012
238-00048015-012		238-00048007-014
238-00048010-014
238-00048012-014
238-00048015-014		100114-120
114-120
114-120
114-120		190
254
317
381		5.0
6.8
8.2
9.5
66.56-6.96
6.56-6.96
6.56-6.96
6.56-6.96		7.5
10
12.5
15		12
16
19
23		238-00066307-010
238-00066310-010
238-00066312-010
238-00066315-010		238-00066307-012
238-00066310-012
238-00066312-012
238-00066315-012		238-000663007-014
238-00066310-014
238-00066312-014
238-00066315-014		150167-176
167-176
167-176
167-176		190
254
317
381		5.4
7.3
8.6
11.8
66.84-7.24
6.84-7.24
6.84-7.24
6.84-7.24		7.5
10
12.5
15		12
16
19
23		238-00069007-010
238-00069010-010
238-00069012-010
238-00069015-010		238-00069007-012
238-00069010-012
238-00069012-012
238-00069015-012		238-00069007-014
238-00069010-014
238-00069012-014
238-00069015-014		150174-183
174-183
174-183
174-183		190
254
317
381		5.4
7.3
8.6
10.4
88.54-8.94
8.54-8.94
8.54-8.94
8.54-8.94		7.5
10
12.5
15		13
17
21
25		238-00086307-010
238-00086310-010
238-00086312-010
238-00086315-010		238-00086307-012
238-00086310-012
238-00086312-012
238-00086315-012		238-00086307-014
238-00086310-014
238-00086312-014
238-00086315-014		200217-227
217-227
217-227
217-227		190
254
317
381		5.9
7.7
9.5
11.30
88.99-9.39
8.99-9.39
8.99-9.39
8.99-9.39		7.5
10
12.5
15		13
17
21
25		238-00090507-010
238-00090510-010
238-00090512-010
238-00090615-010		238-00090507-012
238-00090510-012
238-00090512-012
238-00090515-012		238-00090507-014
238-00090510-014
238-00090512-014
238-00090515-014		200229-238
229-238
229-238
229-238		190
254
317
381		5.9
7.7
9.5
11.34
1010.64-11.04
10.64-11.04
10.64-11.04
10.64-11.04		7.5
10
12.5
15		14
19
23
27		238-00107507-010
238-00107510-010
238-00107512-010
238-00107515-010		238-00107507-012
238-00107510-012
238-00107512-012
238-00107515-012		238-00107507-014
238-00107510-014
238-00107512-014
238-00107515-014		250270-280
270-280
270-280
270-280		190
254
317
381		6.4
8.6
10.4
12.2
1011.04-11.44
11.04-11.44
11.04-11.44
11.04-11.44		7.5
10
12.5
15		14
19
23
27		238-00111007-010
238-00111010-010
238-00111012-010
238-00111015-010		238-00111007-012
238-00111010-012
238-00111012-012
238-00111015-012		238-00111007-014
238-00111010-014
238-00111012-014
238-00111015-014		250280-291
280-291
280-291
280-291		190
254
317
381		6.4
8.6
10.4
12.2
1212.62-13.02
12.62-13.02
12.62-13.02
12.62-13.02		7.5
10
12.5
15		16
20
25
29		238-00127507-010
238-00127510-010
238-00127512-010
238-00127515-010		238-00127507-012
238-00127510-012
238-00127512-012
238-00127515-012		238-00127507-014
238-00127510-014
238-00127512-014
238-00127515-014		300321-331
321-331
321-331
321-331		190
254
317
381		7.3
9.1
11.3
13.15
1213.10-13.50
13.10-13.50
13.10-13.50
13.10-13.50		7.5
10
12.5
15		16
20
25
29		238-00132007-010
238-00132010-010
238-00132012-010
238-00132015-010		238-00132007-012
238-00132010-012
238-00132012-012
238-00132015-012		238-00132007-014
238-00132010-014
238-00132012-014
238-00132015-014		300333-343
333-343
333-343
333-343		190
254
317
381		7.7
9.5
11.3
13.2

With Stainless Steel Bolts

2" CC-015-115

TAP SIZELAST 3 DIGITS FOR ALLOY BOLTSLAST 3 DIGITS FOR STAINLESS STEEL BOLTS
3/4" NPT-006-106
1" NPT-008-108
1 1/4" NPT-010-110
1 1/2" NPT-012-112
2" NPT-014-114
3/4" CC-007-107
1" CC-009-109
1 1/4" CC-011-111
1 1/2" CC-013-113
