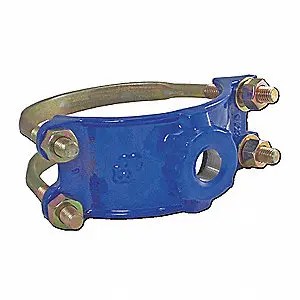

Smith-Blair 313 Service Saddle Double Bale

0 out of 5

( There are no reviews yet. )

Price range: $46.70 through $798.16

Smith-Blair 313 Service Saddle Double Bale

Key Features:

Meets applicable AWWA C800 Standards
The wide saddle body provides stability on the pipe
The gasket is fully bonded to the cavity to hold it in place
NPT, CC and other threaded outlets available in sizes 5⁄8″ thru 4″
A closed lug on one side, combined with the bale, acts as a hinge for easier installation

SKU: N/A

Service Saddle Double OD

Service Saddle Double Tap

Clear

Description
Specifications
Additional information
Reviews (0)

Description

Description:

The Smith-Blair 313 Service Saddle is a double bale Ductile Iron saddle with TaperSealTM gasket and wraparound bales to connect branch lines, instruments, and other appurtenances to pipe.

Application:

Tapping pipe for branch connections and to install service connections, air and vacuum valves.

Key Features:

Meets applicable AWWA C800 Standards
The wide saddle body provides stability on the pipe
The gasket is fully bonded to the cavity to hold it in place
NPT, CC and other threaded outlets available in sizes 5⁄8″ thru 4″
A closed lug on one side, combined with the bale, acts as a hinge for easier installation

Materials Specifications (subject to change):

BODY: Ductile Iron per ASTM A536
BALE: Carbon Steel ASTM A108 (C1018) or HSLA (C111) electro-galvanized with di-chromate seal ASTM-B633
NUTS: Cold formed semi-finished heavy hex Steel A563 elect o-galvanized with di-chromate seal ASTM-B633
WASHERS: Carbon Steel ASTM A108, electro-galvanized with a di-chromate seal ASTM B633
GASKET: Nitrile (Buna N) NSF 61® compounded to resist oil, acids, alkalies, most (aliphatic) hydrocarbon fluids, water and other chemical
Temperature Range: -20°F to 180°F
FINISH: Flexi-Coat® Fusion-Bonded Epoxy Finish, per AWWA C213 Optional: 304 Stainless Steel hardware available upon request

Working Pressure:

Up to 300 PSI, depending on size and application

Pipe Applications:

Steel, Ductile Iron, and Cast Iron.

Taps:

3⁄4″ and 1″ NPT taps; 11⁄4″, 11⁄2″, 2″ and 21⁄2″ NPT taps, 3″ & 4″ NPT taps; 5⁄8″, 3⁄4″ and 1″ CC taps; 1⁄4″, 11⁄2″ and 2″ CC taps

Sizes:

Varies by tap type; see tables for size details

More Information:

The Smith-Blair 313 Service Saddle is a versatile and reliable component widely used in the waterworks and plumbing sectors, designed to facilitate effective connections between service lines and existing pipelines. This service saddle is engineered to meet the applicable American Water Works Association (AWWA) C800 standards, ensuring adherence to rigorous performance and safety criteria that are crucial for maintaining the integrity of water distribution systems.One of the defining features of the Smith-Blair 313 is its wide saddle body, which provides excellent stability when mounted on the pipe. This wide design helps distribute the load evenly, reducing the risk of pipe damage and ensuring a secure and stable connection. This is especially important for maintaining the overall reliability of the pipeline and preventing potential leaks.

The Smith-Blair 313 also incorporates a fully bonded gasket that is securely fixed within the saddle’s cavity. This feature is essential for ensuring a leak-proof seal around the pipe. By keeping the gasket in place, the saddle provides a consistent and effective barrier against leaks, which is crucial for preventing water loss and ensuring the operational efficiency of the pipeline system.

The saddle is available with a range of threaded outlets, including NPT (National Pipe Thread), CC (Copper Connection), and other options, in sizes ranging from 5/8 inch to 4 inches. This variety allows the Smith-Blair 313 to be compatible with a wide range of service lines and installation requirements, providing flexibility for different applications.

For ease of installation, the Smith-Blair 313 features a closed lug on one side of the saddle, which, in combination with the bale, functions as a hinge. This hinge mechanism simplifies the alignment and attachment process, making the installation quicker and more efficient. The user-friendly design reduces the time and effort required for installation, enhancing overall operational convenience.

In summary, the Smith-Blair 313 Service Saddle is a robust and adaptable solution for connecting service lines to pipelines. Its adherence to AWWA standards, wide saddle body for stability, fully bonded gasket for leak prevention, and versatile outlet options make it a preferred choice for professionals seeking reliable and efficient pipeline connections.

5/8", 3/4" and 1" CC Taps

STANDARD Catalog Number Ctn. Qty. Metric

Nom. Size Inches O.D. Range Inches Wt. Ea. Lbs. 5/8" CC/16MM 3/4" CC/20MM 1" CC/25MM Nom Size MM O.D. Range MM WT. Ea. KG.

1 1/4-1 1/2
2 1.61-1.92
2.35-2.56 3
3 313-00019205-000
313-00025605-000 313-00019207-000
313-00025607-000 313-00019209-000
313-00025609-000 6
16 32-40
50 41-48
60-65 1
1

2 1/4-2 1/2
3
3-4 2.44-2.91
2.97-3.54
3.74-4.13 3
4
6 313-00029105-000
313-00035405-000
313-00041305-000 313-00029107-000
313-00035407-000
313-00041307-000 313-00029109-000
313-00035409-000
313-00041309-000 6
6
6 57-63
80
80-100 62-73
76-89
95-105 2
2
3

4
4
4-5
6
6
6 4.40-4.50
4.40-4.80
5.00-5.63
5.84-6.70
5.94-6.90
6.84-7.60 6
6
6
6
6
7 313-00045005-000
313-00048005-000
313-00056305-000
313-00066305-000
313-00069005-000
313-00076005-000 313-00045007-000
313-00048007-000
313-00056307-000
313-00066307-000
313-00069007-000
313-00076007-000 313-00045009-000
313-00048009-000
313-00056309-000
313-00066309-000
313-00069009-000
313-00076009-000 6
6
6
4
4
4 100
100
100-125
150
150
150 112-114
112-122
121-143
151-170
151-175
174-193 3
3
3
3
3
3

6-8
6-8
8-10 7.69-8.72
7.69-9.05
8.54-10.10 7
8
8 313-00087205-000
313-00090505-000
313-00101005-000 313-00082707-000
313-00090507-000
313-00101007-000 313-00087209-000
313-00090509-000
313-00101009-000 4
4
4 150-200
150-200
150-250 195-221
195-230
217-256 4
4
4

10
10-12
12
12-14
12-14
14-16 10.75-11.10
10.64-12.12
12.75-13.20
14.73-15.65
15.95-17.25 10
10
14
15
18
19 313-00111005-000
313-00121205-000
313-00132005-000
313-00143205-000
313-00156505-000
313-00172505-000 313-00111007-000
313-00121207-000
313-00132007-000
313-00143207-000
313-00156507-000
313-00172507-000 311-0011109-000
313-00121209-000
313-00132009-000
313-00143209-000
313-00156509-000
313-00172509-000 4
4
4
4
1
1 250
250-300
300
300-350
300-350
350-400 273-282
271-307
324-355
321-363
375-397
406-438 4
4
7
7
8
9

16
16-18
*18
*20
*24 17.25-1780
17.40-18.88
19.38-19.68
21.55-21.65
25.75-25.85 19
19
20
20
20 313-00178005-000
313-00188805-000
313-00195005-000
313-00216005-000
313-00258005-000 313-00178007-000
313-00188807-000
313-00195007-000
313-00216007-000
313-00258007-000 313-00178009-000
313-00188809-000
313-00195009-000
313-00216009-000
313-00258009-000 1
1
1
1
1 410
400-500
450
500
600 438-452
442-479
492-500
547-550
654-657 9
9
9
9
9

*Fabricated straps, epoxy coated carbon steel

1 1/4", 1 1/2", and 2" CC Taps

STANDARD Catalog Number Ctn. Qty. Metric

Nom. Size Inches O.D. Range Inches Wt. Ea. Lbs. 1-1/4"CC/32MM 1-1/2"CC/40MM 1-1/2"CC/40MM Nom Size MM O.D. Range MM WT. Ea. KG.

2 2.35-2.56
2.97-3.54 3
3 313-00025611-000
313-00035411-000 N/A
313-00035413-000 N/A 6
6 50
80 60-65
756-89 1
2

3-4
4
4
4-5
4-5
6 3.74-4.13
4.40-4.50
4.40-4.80
4.74-5.14
5.00-5.63
5.94-6.70 8
6
6
8
9
9 313-00041311-000
313-00045011-000
313-00048011-000
313-00051411-000
313-00056311-000
313-00066311-000 313-00041313-000
313-00045013-000
313-00048013-000
313-00051413-000
313-00056313-000
313-00066313-000 313-00041315-000
313-00045015-000
313-00048015-000
313-00051415-000
313-00056315-000
313-00066315-000 6
6
6
6
4
4 80-100
100
100
100-125
100-125
150 95-104
112-114
112-122
120-130
127-143
151-170 3
3
3
3
4
4

6
6
6-8
6-8
8-10 5.94-6.90
6.84-7.60
7.69-8.72
7.69-9.05
8.54-10.10 9
7
11
11
9 313-00069011-000
313-00076011-000
313-00087211-000
313-00090511-000
313-00101011-000 313-00069013-000
313-00076013-000
313-00087213-000
313-00090513-000
313-00101013-000 313-00069015-000
313-00076015-000
313-00087215-000
313-00090515-000
313-00101015-000 4
4
4
4
4 150
150
150-200
150-200
200-250 151-175
174-193
195-221
195-230
217-256 4
3
5
5
4

10
10-12
12
12-14
12-14
14-16 10.75-11.10
10.64-12.12
12.75-13.20
12.62-14.32
14.73-15.65
15.95-17.25 10
11
14
14
18
19 313-00111011-000
313-00121211-000
313-00132011-000
313-00143211-000
313-00156511-000
313-00172511-000 313-0011013-000
313-00121213-000
313-00132013-000
313-00143213-000
313-00156513-000
313-00172513-000 313-0011015-000
313-00121215-000
313-00132015-000
313-00143215-000
313-00156515-000
313-00172515-000 4
4
4
4
1
1 250
250-300
300
300-350
300-350
350-400 273-282
271-307
324-335
321-363
375-397
406-438 5
5
6
6
8
9

16
16-18
*18
*20
*24 17.25-17.80
17.40-18.88
19.38-19.68
21.55-21.65
25.75-25.85 19
19
20
20
20 313-00178011-000
313-00188811-000
313-00195011-000
313-00216011-000
313-00258011-000 313-00178013-000
313-00188813-000
313-00195013-000
313-00216013-000
313-00258013-000 313-00178015-000
313-00188815-000
313-00195015-000
313-00216015-000
313-00258015-000 1
1
1
1
1 410
400-450
450
500
600 438-452
442-479
492-500
547-550
654-657 9
9
9
9
9

*Fabricate straps, epoxy coated carbon steel

3/4" and 1" NPT Taps

STANDARD Catalog Number Ctn. Qty. Metric

Nom. Size Inches O.D. Range Inches Wt. Ea. Lbs. 3/4"NPT/20MM 1"NPT/25MM Nom Size MM O.D. Range MM WT. Ea. KG.

1-1/4-1-1/2
2 1.61-1.92
2.35-2.56 3
3 313-00019206-000
313-00025606-000 313-00019208-000
313-00025608-000 6
6 32-40
50 41-48
60-65 1
1

2-1/4-2-1/2
3
3-4
4
4 2.44-2.91
2.97-3.54
3.74-4.13
4.40-4.50
4.40-4.80 3
4
6
6
6 313-00029106-000
313-00035406-000
313-00041306-000
313-00045006-000
313-00048006-000 313-00029108-000
313-00035408-000
313-00041308-000
313-00045008-000
313-00048008-000 6
6
6
6
6 57-65
80
80-100
100
100 62-73
76-89
95-105
112-114
112-122 2
2
3
3
3

4-5
6
6
6 5.00-5.63
5.94-6.70
5.94-6.90
6.84-7.60 6
6
6
7 313-00056306-000
313-00035406-000
313-00069006-000
313-00076006-000 313-00056308-000
313-00035408-000
313-00069008-000
313-00076008-000 6
4
4
4 100-125
150
150
150 121-143
151-170
151-175
174-193 3
3
3
3

6-8
6-8
8-10 7.69-8.72
7.69-9.05
8.54-10.10 8
8
8 313-00087306-000
313-00090506-000
313-00101006-000 313-00087308-000
313-00090508-000
313-00101008-000 4
4
4 150-200
150-200
200-250 195-221
195-230
217-256 4
4
4

10
10-12
12
12-14
12-14
14-16 10.75-11.10
10.64-12.12
12.75-13.20
12.62-14.32
14.73-15.65
15.95-17.25 10
10
14
15
18
19 313-00111006-000
313-00121206-000
313-00132006-000
313-00143206-000
313-00156506-000
313-00172506-000 313-00111008-000
313-00121208-000
313-00132008-000
313-00143208-000
313-00156508-000
313-00172508-000 4
4
4
4
1
1 250
250-300
300
300-350
300-350
350-400 273-282
271-307
324-335
321-363
375-397
406-438 4
4
7
7
8
9

16
16-18
*18
*20
*24 17.25-17.80
17.40-18.88
19.38-19.68
21.55-21.65
25.75-25.85 19
19
20
20
20 313-00178006-000
313-00188806-000
313-00195006-000
313-00216006-000
313-00258006-000 313-00178008-000
313-00188808-000
313-00195008-000
313-00216008-000
313-00258008-000 1
1
1
1
1 410
400-450
450
500
600 438-452
442-479
492-499
547-550
654-657 9
9
9
9
9

*Fabricated straps, epoxy coated carbon steel

1 1/4", 1 1/2", 2", and 2 1/2" NPT Taps

STANDARD Catalog Number Ctn. Qty. Metric

Nom. Size Inches O.D. Range Inches Wt. Ea. Lbs. 1 1/4NPT / 32MM 1 1/2NPT / 40MM 2 NPT / 50MM 2 1/2 NPT / 65MM Nom Size MM O.D. Range MM WT. Ea. KG.

2 2.35-2.56 3 313-00025610-000 311-00025612-000 - - 6 50 60-65 1

3 2.97-3.54 5 313-00035410-000 311-00035412-000 313-00035414-000 6 80 76-89 3

3-4 3.74-4.13 8 313-00041310-000 313-00035412-000< 313-00041314-000 313-00041316-000 6 80-100 95-104 3

4 4.40-4.50 6 313-00045010-000 313-00045012-000 313-00045014-000 313-00041316-000 6 100 112-114 3

4 4.40-4.80 6 313-00048010-000 313-00048012-000 313-00048014-000 313-00048014-000 6 100 112-122 3

4-5 4.74-5.14 8 313-00051410-000 313-00051412-000 313-00051414-000 313-00051416-000 6 100-125 120-130 3

4-5 5.00-5.63 9 313-00056310-000 313-00056312-000 313-00056314-000 313-00066316-000 4 100-125 127-143 4

6 5.94-6.70 9 313-00066310-000 313-00066312-000 313-00066314-000 313-00066316-000 4 150 151-170 4

6 5.94-6.90 9 313-00066910-000 313-00066912-000 313-00066914-000 313-00066916-000 4 150 151-175 4

6 6.84-7.60 7 313-00076010-000 313-00076012-000 313-00076014-000 313-00076016-000 4 150 174-193 3

6-8 7.69-8.72 11 313-00087210-000 313-00087212-000 313-00087214-000 313-00087216-000 4 150-200 195-221 5

6-8 7.69-9.05 11 313-00090510-000 313-00090512-000 313-00090514-000 313-00090516-000 4 150-200 195-230 5

8-10 8.54-10.10 9 313-00101010-000 313-00101012-000 313-00101014-000 313-00101016-000 4 200-250 217-256 4

10 10.75-11.10 10 313-00111010-000 313-00111012-000 313-00111014-000 313-00111016-000 4 250 273-282 4

10-12 10.64-12.12 11 313-00121210-000 313-00121212-000 313-00121214-000 313-00121216-000 4 250-300 271-307 5

12 12.75-13.20 15 313-00132010-000 313-00132012-000 313-00132014-000 313-00132016-000 7 150 151-170 4

12-14 12.62-14.32 15 313-00143210-000 313-00143212-000 313-00143214-000 313-00143216-000 4 300-350 321-363 6

12-14 14.73-15.65 18 313-00156510-000 313-00156512-000 313-00156514-000 313-00156516-000 1 300-350 375-397 8

14-16 15.95-17.25 19 313-00172510-000 313-00172512-000 313-00172514-000 313-00172516-000 1 350-400 406-438 9

16 17.25-17.80 19 313-00178010-000 313-00178012-000 313-00178014-000 313-00178016-000 1 410 438-452 9

16-18 17.40-18.88 19 313-00188010-000 313-00188012-000 313-00188014-000 313-00188016-000 1 400-450 442-479 9

*18 19.38-19.68 20 313-00195010-000 313-00195012-000 313-00195014-000 313-00195016-000 1 450 479-495 9

*20 21.55-21.65 20 313-00216010-000 313-00216012-000 313-00216014-000 313-00216016-000 1 500 457-550 9

*24 25.75-25.85 20 313-00258010-000 313-00258012-000 313-00258014-000 313-00258016-000 1 600 654-657 9

*Fabricated straps, epoxy coated carbon steel

3" and 4" NPT Taps

STANDARD Catalog Number Ctn. Qty. Metric

Nom. Size Inches O.D. Range Inches Wt. Ea. Lbs. 3"NPT/80MM 4"NPT/100MM Nom Size MM O.D. Range MM WT. Ea. KG.

6
6
8-10 5.94-6.70
6.84-7.60
8,54-10.10 10
13
15 313-00066317-000
313-00076017-000
313-00101017-000 N/A
313-00076018-000
313-00101018-000 4
4
3 150
150
200-250 151-171
174-193
217-256 55
6
7

10
10-12
12
12-14
12-14 10.75-11.10
11.30-12.12
12.75-13.20
13.40-14.32
14.73-15.65 14
14
18
18
28 See 357's page 22 313-00121217-000
See 357's page 22 313-00143217-000
313-00156517-000 See 357's page 22 313-00121218-000
See 357's page 22 313-00143218-000
313-00156518-000 -2
-2
2 -250-300
-300-350
300-350 -271-307
-321-363
375-397 -6
-8
13

14-16
16
16-18
*18 15.98-16.59
17.25-17.80
17.81-18.88
19.38-19.68 28
29
30
30 313-00165917-000
313-00178017-000
313-00188817-000
313-00195017-000 313-00165918-000
313-00178018-000
313-00188818-000
313-00195018-000 1
1
1
1 350-400
400
400-450
450 406-421
439-452
452-479
492-500 13
13
13
14

*Fabricated straps, epoxy coated carbon steel. 1/2 inch I.P. Taps can be accommodated by inserting a bushing in the 3/4 inch taps.

BSP Thread Tap Codes

Size Code Number Example

1/2" 59 1-1/4" NPT 313-00025610-000

3/4" 50

1" 51

1 1/4" 54

1 1/2" 52 1-1/4" BSP 313-00025654-000

2" 53

2 1/2" 55

3" 56

Additional information

Weight	N/A
Dimensions	N/A
Service Saddle Double OD	1.61-1.92, 2.35-2.56, 2.44-2.91, 2.97-3.54, 3.74-4.13, 4.40-4.50, 4.40-4.80, 4.74-5.14, 5.00-5.63, 5.94-6.70, 5.94-6.90, 6.63-6.96, 6.84-7.60, 7.69-8.72, 7.69-9.05, 8.54-10.10, 10.64-12.12, 10.75-11.10, 11.30-12.12, 12.62-14.32, 12.75-13.20, 13.40-14.32, 14.73-15.65, 15.95-17.25, 15.98-16.59, 17.25-17.80, 17.40-18.88, 17.81-18.88, 19.38-19.68, 21.55-21.65, 25.75-25.85
