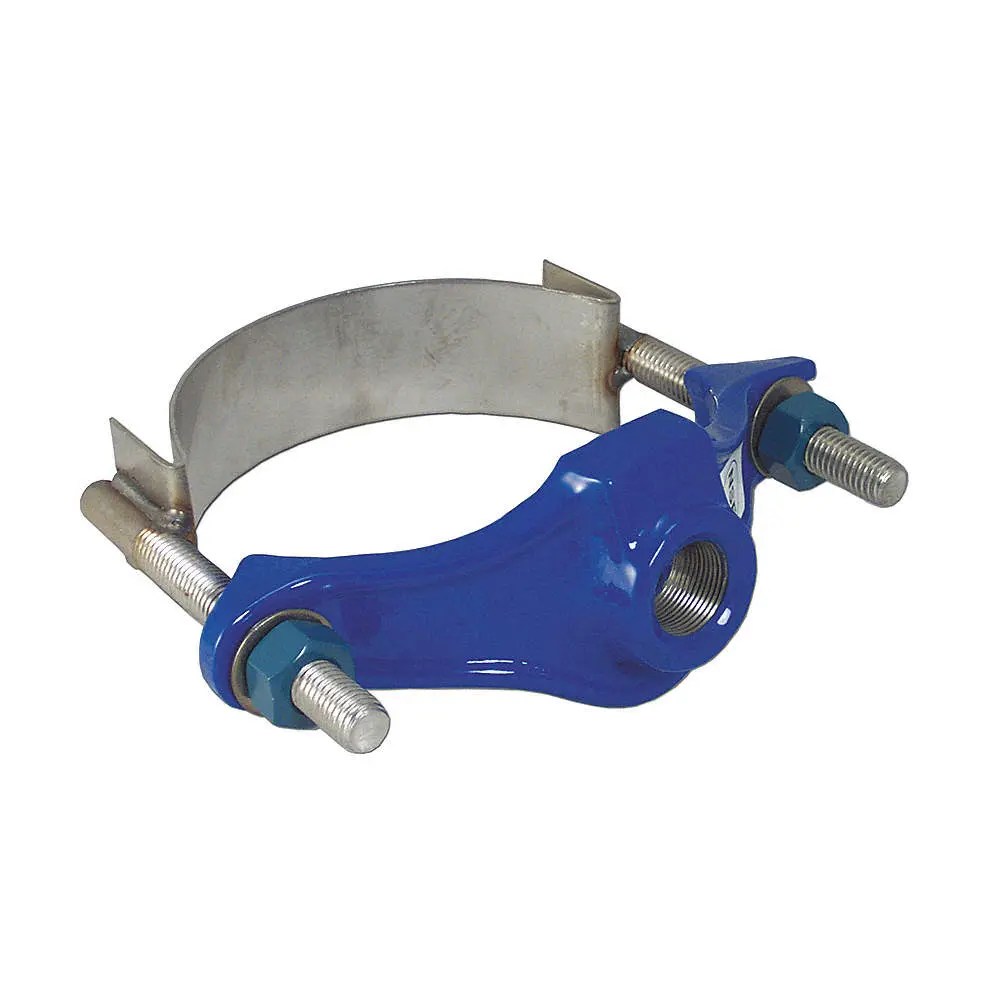

315 Service Saddle Single Stainless Steel Strap

Smith-Blair 315 Service Saddle

0 out of 5

( There are no reviews yet. )

Price range: $76.55 through $175.42

Smith-Blair 315 Service Saddle
Single Stainless Steel Strap

Key Features:

Meets applicable AWWA C800 Standards
The wide saddle body provides stability on the pipe
Designed with PVC and other soft or brittle pipe in mind
The gasket is fully bonded to the cavity to hold it in place
NPT, CC and other threaded outlets available in sizes 5⁄8″ thru 4″
Wide band spreads the load over larger area to prevent damage to the pipe when tightening the strap
A closed lug on one side, combined with the strap, acts as a hinge for easier installation

SKU: N/A

Service Saddle Single Stainless-OD

Service Saddle Taps

Clear

Description
Specifications
Additional information
Reviews (0)

Description

Description:

The Smith-Blair 315 Service Saddle is a single strap, Ductile Iron service saddle with TaperSealTM gasket and wraparound 304 Stainless Steel strap for added corrosion resistance

Application:

For outlets of 5⁄8″ through 2″.

Key Features:

Meets applicable AWWA C800 Standards
The wide saddle body provides stability on the pipe
Designed with PVC and other soft or brittle pipe in mind
The gasket is fully bonded to the cavity to hold it in place
NPT, CC and other threaded outlets available in sizes 5⁄8″ thru 4″
Wide band spreads the load over larger area to prevent damage to the pipe when tightening the strap
A closed lug on one side, combined with the strap, acts as a hinge for easier installation

Materials Specifications (subject to change):

BODIES: Ductile Iron per ASTM A536
STRAPS: Type 304 Stainless Steel. Single Strap, 2″ wide
NUTS: Type 304 Stainless Steel fluo opolymer coated
WASHERS: Type 304 Stainless Steel
STUDS: Type 304 Stainless Steel
GASKET: Nitrile (Buna N) NSF 61® compounded to resist oil, acids, alkalies, most (aliphatic) hydrocarbon fluids, water and other chemical
Temperature Range: -20°F to 180°F
FINISH: Flexi-Coat® Fusion-Bonded Epoxy Finish

Working Pressure:

Up to 200 PSI

Pipe Applications:

Steel, Ductile Iron (depending on size and application), HDPE (when used with spring washers) Cast Iron, Asbestos Cement, PVC. For other pipe materials, please contact Smith-Blair Engineering.

Taps:

5⁄8″, 3⁄4″, 1″, 11⁄4″ and 11⁄2″ CC Taps; 3⁄4″, 1″, 11⁄4″, 11⁄2″ and 2″ NPT taps

Sizes:

Varies by tap type; see tables for size details

More Information:

The Smith-Blair 315 Service Saddle is a robust and reliable single-strap saddle designed for creating secure service connections on various types of piping, particularly for PVC and other softer or brittle pipe materials. Constructed from durable ductile iron, it is engineered for long-lasting performance in water distribution, irrigation, and other utility systems. The service saddle incorporates Smith-Blair’s TaperSeal™ gasket technology and features a wraparound 304 stainless steel strap, providing added corrosion resistance and ensuring that the saddle performs well in harsh environments.

One of the key features of the Smith-Blair 315 Service Saddle is its TaperSeal™ gasket, which is fully bonded to the cavity, ensuring that it remains securely in place during installation and service. This gasket design improves sealing performance, reducing the risk of leaks at the point of connection. The saddle accommodates a range of outlets from 5/8″ to 2″ in size, and larger threaded outlets are available up to 4″, making it versatile for various application needs. Additionally, the product meets applicable AWWA C800 standards, which guarantees its suitability for potable water systems and other utility applications.

The design of the saddle prioritizes stability and protection for the pipe. Its wide saddle body distributes the load over a larger surface area, reducing stress on the pipe when the strap is tightened. This feature is particularly important when working with softer or more brittle pipes like PVC, as it helps to prevent damage or cracking during installation. By spreading the load, the saddle minimizes the potential for pipe deformation, ensuring a secure fit without compromising the integrity of the pipe.

Another key feature of the Smith-Blair 315 Service Saddle is its ease of installation. The closed lug on one side of the saddle, combined with the strap, functions as a hinge, allowing for quick and easy installation around the pipe. This design minimizes installation time and reduces labor costs, making it an efficient choice for utility workers and contractors. NPT (National Pipe Thread), CC (Corporation Cock), and other threaded outlets are available, providing flexibility for various pipe connections.

In summary, the Smith-Blair 315 Service Saddle offers a durable, corrosion-resistant solution for creating reliable service connections. Its wide saddle body, robust gasket design, and ease of installation make it a versatile and dependable option for water distribution and utility systems.

5/8", 3/4" and 1" CC Taps

STANDARD Catalog Number Ctn. Qty. Metric

Nom. Size Inches O.D. Range Inches Wt. Ea. Lbs. 5/8" CC/16MM 3/4" CC/20MM 1" CC/25MM Nom Size MM O.D. Range MM WT. Ea. KG.

1
1-1/4-1-1/2 1.31-1.39
1.61-1.92 1
1 315-00013905-000
315-00019205-000 315-00013907-000
315-00019207-000 N/A
315-00019209-000 12
12 25-32
40 33-35
41-48 1
1

2
2
2 2.13
2.38
2.35-2.56 2
2
2 315-00021305-000
315-00023805-000
315-00025605-000 315-00021307-000
315-00023807-000
315-00025607-000 315-00021309-000
315-00023809-000
315-00025609-000 12
12
12 50
50
50 54
60
60-65 1
1
1

2-1/4-2-1/2
3 2.44-2.91
2.97-3.54 2
2 315-00029105-000
315-00035405-000 315-00029107-000
315-00035407-000 315-00029109-000
315-00035409-000 8
12 57-65
80 62-73
76-89 1
1

4
4 4.40-4.50
4.40-4.80 3
4 315-00045005-000
315-00048005-000 315-00045007-000
315-00048007-000 315-00045009-000
315-00048009-000 12
10 80-100
100 112-114
111-122 1
2

4-5
5-6
5-6* 4.74-5.63
5.94-6.70
5.94-6.90 3
4
4 315-00056305-000
315-00066305-000
315-00069005-000 315-00056307-000
315-00066307-000
315-00069007-000 315-00056309-000
315-00066309-000
315-00069009-000 10
8
8 100-125
125-150
125-150 120-143
151-170
151-175 2
2
2

6
6-8
6-8* 6.84-7.60
7.69-8.72
7.69-9.05 4
5
5 315-00076005-000
315-00087205-000
315-00090505-000 315-00076007-000
315-00087207-000
315-00090507-000 315-00076009-000
315-00087209-000
315-00090509-000 10
10
10 150
150-200
150-200 174-193
195-221
195-230 2
2
2

8-10
10-12
12
12-14 8.54-10.10
10.64-12.12
12.75-13.20
12.62-14.32 5
5
6
7 315-00101005-000
315-00121205-000
315-00132005-000
315-00143205-000 315-00101007-000
315-00121207-000
315-00132007-000
315-00143207-000 315-00101009-000
315-00121209-000
315-00132009-000
315-00143209-000 10
6
6
6 200-250
250-300
300
300-350 217-256
271-307
324-335
321-363 2
3
3
3

*Sized for use on C900 PVC Pipe

3/4" and 1" NPT

STANDARD Catalog Number Ctn. Qty. Metric

Nom. Size Inches O.D. Range Inches Wt. Ea. Lbs. 3/4" NPT/20MM 1" NPT/25MM Nom Size MM O.D. Range MM WT. Ea. KG.

1
1-1/14-1-1/2 1.31-1.39
1.61-1.92 1
1 315-00013906-000
315-00019206-000 N/A
315-00019208-000 12
12 25-32
40 33-35
41-48 1
1

2
2
2 2.13
2.38
2.35-2.56 2
2
2 315-00021306-000
315-00023806-000
315-00025606-000 315-00021308-000
315-00023808-000
315-00025608-000 12
12
12 50
50
50 54
60
60-65 1
1
1

2-1/4-2-1/2
3 2.44-2.91
2.97-3.54 2
2 315-00029106-000
315-00035406-000 315-00029108-000
315-00035408-000 8
12 57-65
80 62-73
76-89 1
1

4
4 4.40-4.50
4.40-4.80 3
4 315-00045006-000
315-00048006-000 315-00045008-000
315-00048008-000 12
10 100
100 112-114
112-122 1
2

4-5 4.74-5.63 3 315-00056306-000 315-00056308-000 10 100-125 121-143 2

5-6
5-6* 5.94-6.70
5.94-6.90 4 315-00066306-000
315-00069006-000 315-00066308-000
315-00069008-000 8
8 125-150
125-150 151-170
151-175 2
2

6 6.84-7.60 5 315-00076006-000 315-00076008-000 8 150 174-193 2

6-8
*6-8 7.69-8.72
7.69-9.05 5
5 315-00087206-000
315-00090506-000 315-00087208-000
315-00090508-000 10
10 150-200
150-200 195-221
195-230 2
2

8-10
10-12
12*
12-14 8.54-10.10
10.64-12.12
12.75-13.20
12.62-14.32 5
5
5
5 315-00101006-000
315-00121206-000
315-00132006-000
315-00143206-000 315-00101008-000
315-00121208-000
315-00132008-000
315-00143208-000 10
6
6
6 200-250
250-300
300
300-350 217-256
271-307
324-335
321-363 2
3
3
3

*Sized for use on C900 PVC Pipe

1 1/4", 1 1/2" CC Taps

STANDARD Catalog Number Ctn. Qty. Metric

Nom. Size Inches O.D. Range Inches Wt. Ea. Lbs. 1 1/4NPT / 32MM 1 1/2NPT / 40MM Nom Size MM O.D. Range MM WT. Ea. KG.

2
2-1/4-2-1/2 2.35-2.56
2.44-2.91 2
3 315-00025611-000
315-00029111-000 N/A
315-00029113-000 6
6 50
57-65 60-65
62-73 1
1

3 2.91-2.97 3 315-00035411-000 315-00035413-000 6 80 74-75 1

4
4 4.40-4.50
4.40-4.80 4
4 315-00045011-000
315-00048011-000 315-00045013-000
315-00048013-000 6
6 100
100 112-114
112-122 2
2

4-5
5-6
5-6* 4.74-5.63
5.94-6.70
5.94-6.90 5
5
5 315-00056311-000
315-00066311-000
315-00069011-000 315-00056313-000
315-00066313-000
315-00069013-000 6
6
6 100-125
125-150
125-150 121-143
151-170
151-175 2
2
2

6
6-8
6-8* 6.84-7.60
7.69-8.72
7.69-9.05 6
6
6 315-00076011-000
315-00087211-000
315-00090511-000 315-00076013-000
315-00087213-000
315-00090513-000 6
6
6 150
150-200
150-200 174-193
195-221
195-230 3
3
3

8-10
10-12
12*
12-14 8.54-10.10
10.64-12.12
12.75-13.20
12.62-14.32 6
6
6
6 315-00101011-000
315-00121211-000
315-00132011-000
315-00143211-000 315-00101013-000
315-00121213-000
315-00132013-000
315-00143213-000 6
6
6
6 200-250
250-300
300
300-350 217-256
271-307
324-335
321-363 3
3
3
3

*Fabricated straps, epoxy coated carbon steel

1 1/4", 1 1/2" and 2" NPT Taps

STANDARD Catalog Number Ctn. Qty. Metric

Nom. Size Inches O.D. Range Inches Wt. Ea. Lbs. 1 1/4NPT / 32MM 1 1/2NPT / 40MM 2" NPT / 50MM Nom Size MM O.D. Range MM WT. Ea. KG.

2
2-1/4-2-1/2 2.35-2.56
2.44-2.91 2
3 315-00025610-000
315-00029110-000 315-00025612-000
315-00029112-000 -
_ 50
57-65 60-65
62-73 1
1 6
6

3 2.97-3.54 3 315-00035410-000 315-00035412-000 - 6 80 76-89 1

4
4 4.40-4.50
4.40-4.80 4
4 315-00045010-000
315-00048010-000 315-00045012-000
315-00048012-000 315-00045014-000
315-00048014-000 6
6 100
100 112-114
112-122 2
2

4-5
5-6*
5-6 4.74-5.63
5.94-6.70
5.94-6.90 5
3
3 315-00056310-000
315-00066310-000
315-00069010-000 315-00056312-000
315-00066312-000
315-00069012-000 315-00056314-000
315-00066314-000
315-00069014-000 6
6
6 100-125
125-150
125-150 121-143
151-170
151-175 2
2
2

6
6-8
6-8* 6.84-7.60
7.69-8.72
7.69-9.05 6
6
6 315-00076010-000
315-00087210-000
315-00090510-000 315-00076012-000
315-00087212-000
315-00090512-000 315-00076014-000
315-00087214-000
315-00090514-000 6
6
6 150
150-200
150-200 174-193
195-221
195-230 3
3
3

8-10
10-12
12*
12-14 8.54-10.10
10.64-12.12
12.75-13.20
12.62-14.32 6
6
6
7 315-00101010-000
315-00121210-000
315-00132010-000
315-00143210-000 315-00101012-000
315-00121212-000
315-00132012-000
315-00143212-000 315-00101014-000
315-00121214-000
315-00132014-000
315-00143214-000 6
6
6
6 200-250
250-300
300
300-350 217-256
271-307
324-335
321-363 3
3
3
3

*Sized for use on CV900 PVC Pipe

BSP Thread Tap Codes

Size Code Number Example

1/2" 59 3/4" NPT 315-00013906-000

3/4" 50

1" 51

1 1/4" 54

1 1/2" 52 3/4" NPT 315-0013950-000

2" 53

2 1/2" 55

3" 56
